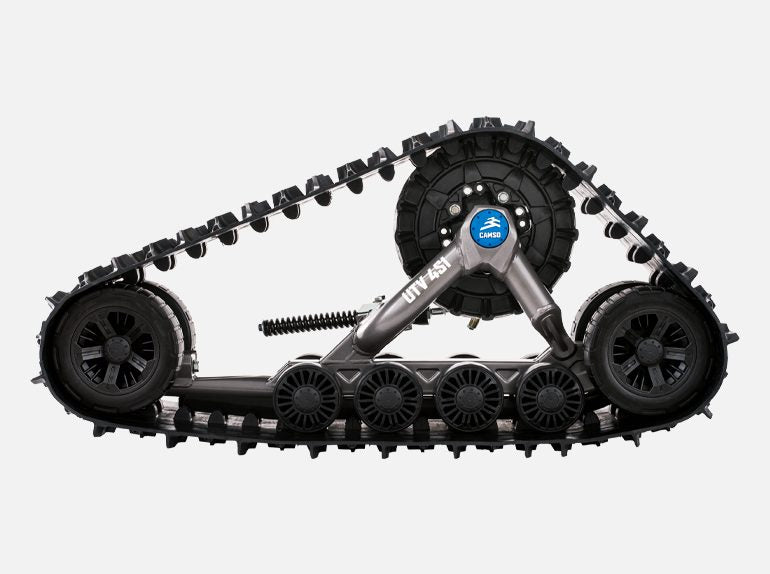

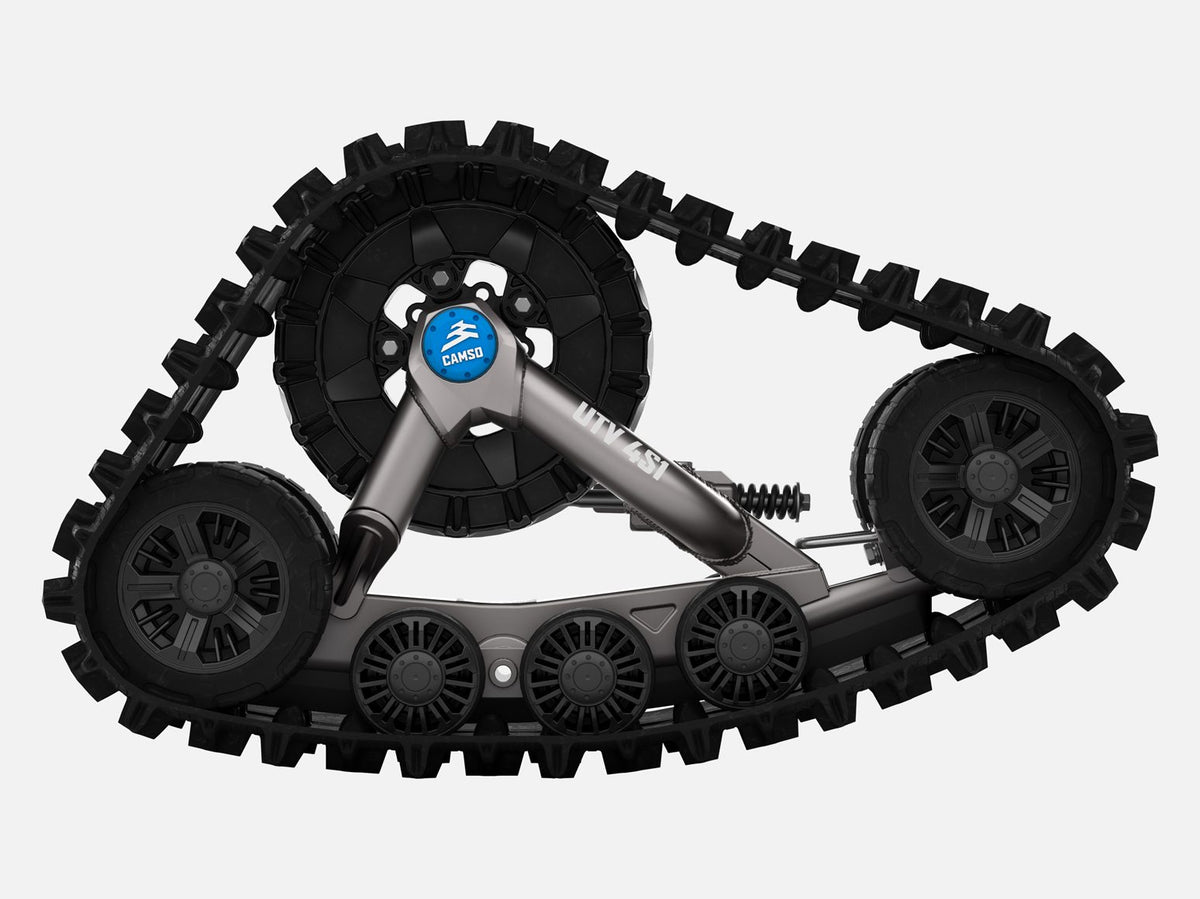

Camso Utv 4SI Track System

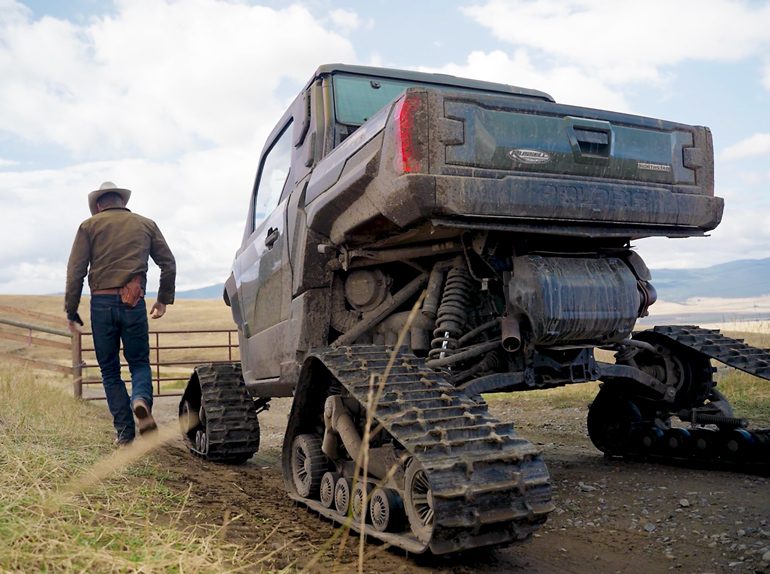

Built for extremes, this track system pushes the performance of your side-by-side to the next level. All the traction, torque, and horsepower you need for fishing on ice, hunting in swamps, ranching in mud, and hauling in deep snow.

What's included

4 track systems (2 front, 2 rear) & adapted mount kit to fit tracks on your vehicle

Ground coverage: approx. 2520 sq. in.

Avg. ground clearance: Increased by 5 in (*vs tires)

Climb 20º hills, Tested in deep snow

Fits on 300+ side-by-side models

Camso Warranty

2-year limited warranty. Covers manufacturing defects related to materials & workmanship.

Expert Support

Dedicated tracks experts able to answer your most technical questions.

TECHNICAL SPECS

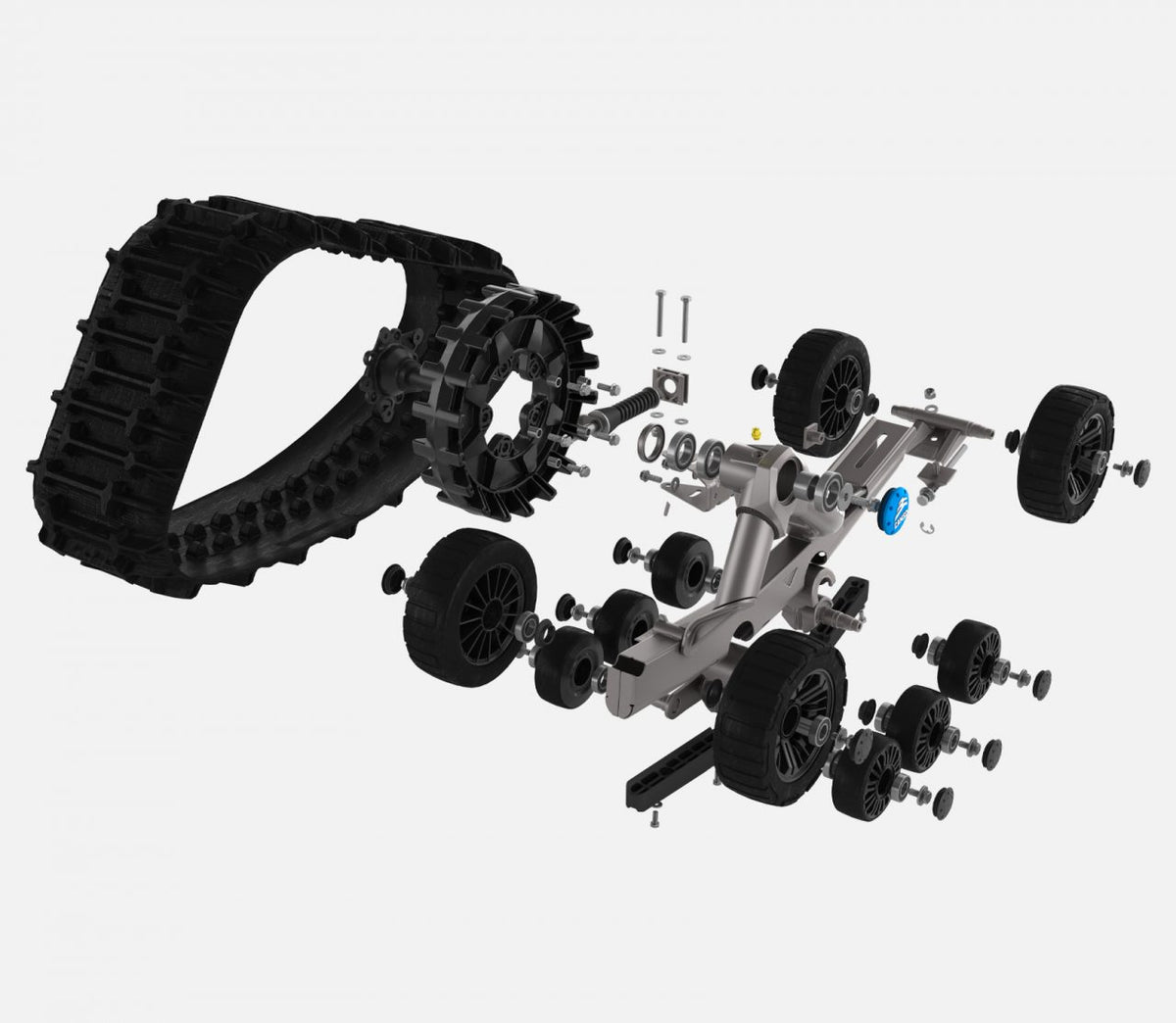

Take a closer look at the components, technology & dimensions of the Camso UTV 4S1.

Drive type

Internal drive

Sprocket

15 to 18 teeth

Frame

Carbon steel

Anti-rotation

Redesigned mild steel anti-rotation single rate spring and progressive damper.
Quick connect steering limiter design.

Weight

F: 46.7 kg
R: 54.4 kg
Mount kit: 2.72 kg (approx.)

Hub & bearings

Oiled 3-bearing with forged steel multi-bolt
(4-5) pattern hub.

Wheels & bearings

132 mm double-bearing mid-roller wheels
(50 mm width).
241 mm double-bearing flat-free tires.
Bladder-type wheel cap and face seal.

Rubber track design

F: Flex
R: Flat

Track length

F: 248.9 cm
R: 294.6 cm

Track lug height

F: 2.54 cm
R: 2.54 cm

Track width

F: 30.5 cm
R: 35.6 cm
