PRECISION EFI HD GEAR BUSHING - 998T
Product Details
Brand: Precision EFI

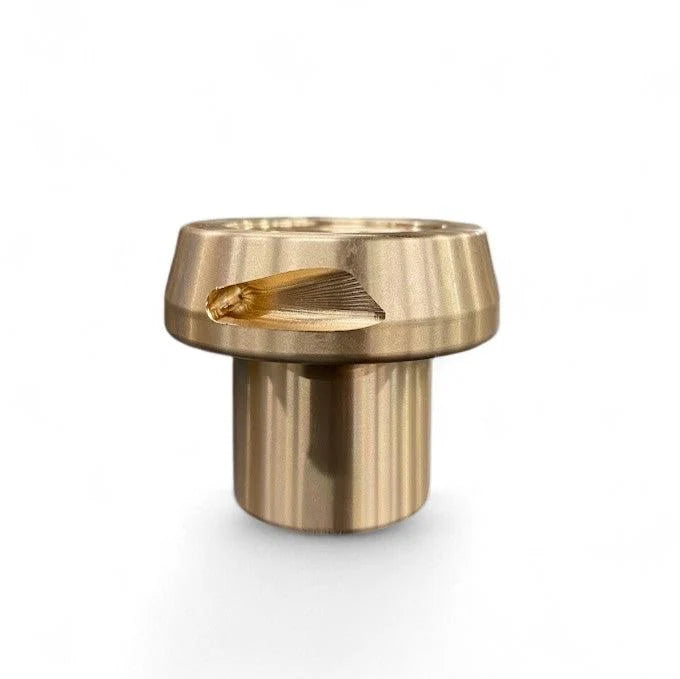

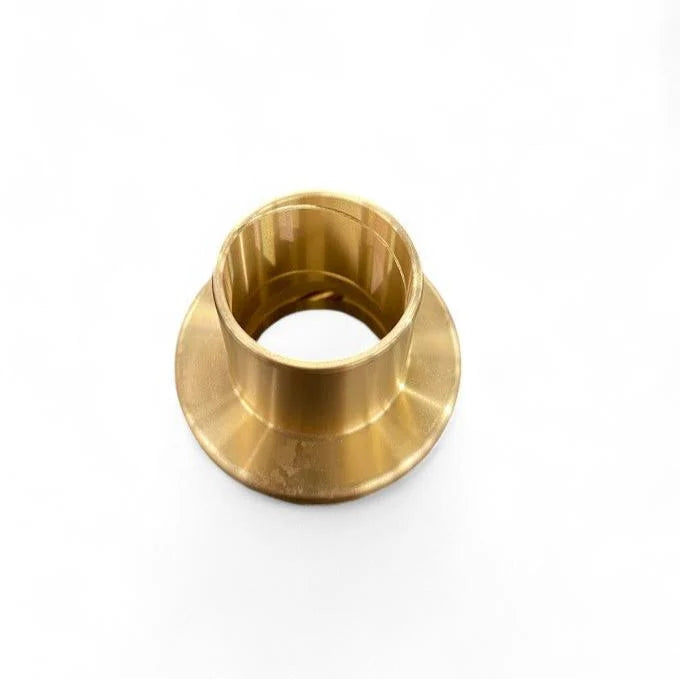

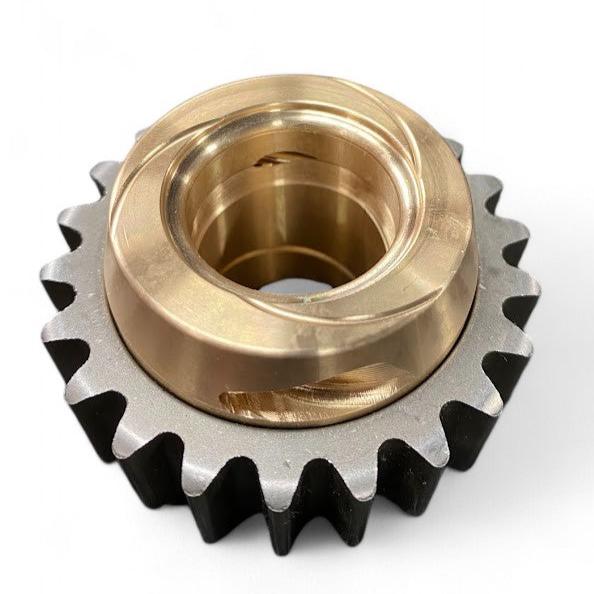

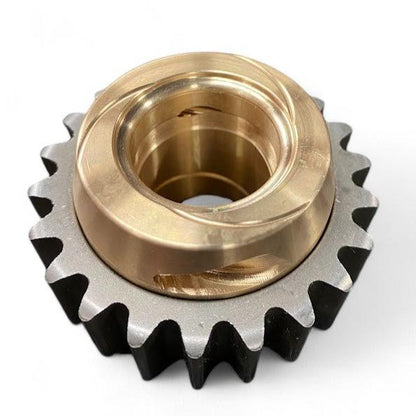

The PEFI HD Gear Bushing is designed to ensure the best performance and durability in the most extreme conditions. This CNC machined bronze part is perfect for today's high performance sleds and all riders who want greater durability than the original.

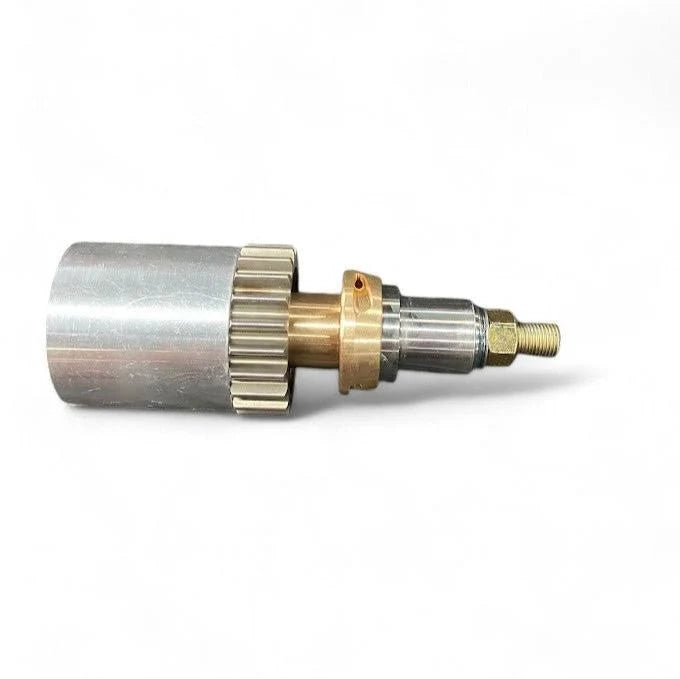

Easy installation without modification and need of a hydraulic press, thanks to the PEFI Special Tool sold separately.
The HD Gear Bushing is covered by a limited lifetime warranty***
***Tool and HD Gear bushing must have been purchased at the same time, on the same invoice. All claims must meet the PEFI warranty criteria of the Product return, Warranty and disclaimer document.
Install tips:
1 - Remove the OEM circlip and washer
2 - Remove the gear
3 - Remove the 2nd washer and circlip, the washer and circlip at the back of the gear will not be reused (Important, do not remove the bearing retaining ring)

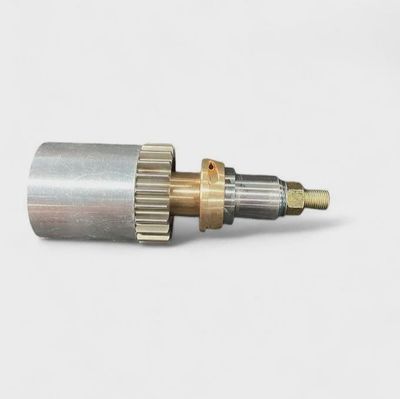

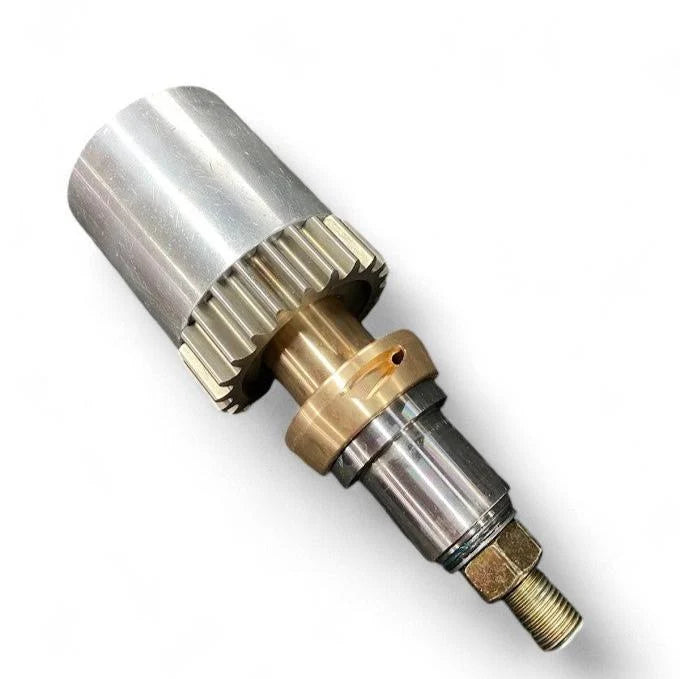

4 - Remove the original bushing from the gear using the optional PEFI Extractor Tool

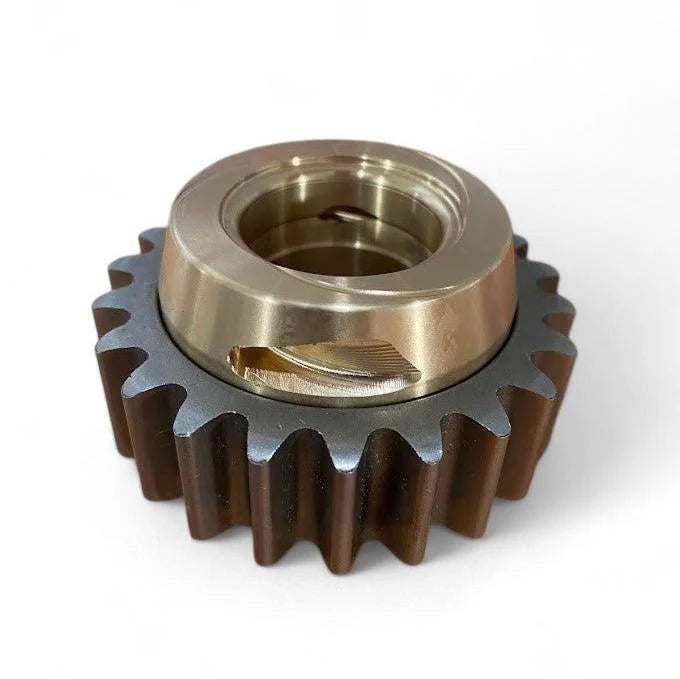

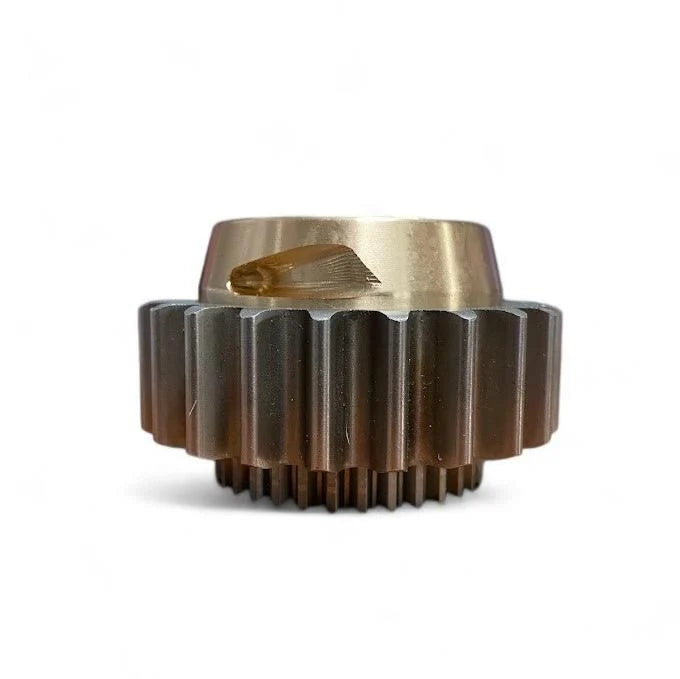

5 - Insert the HD Gear bushing into the gear using the other two ends of the PEFI Tool (in other words, reverse the 2 main parts of the tool)

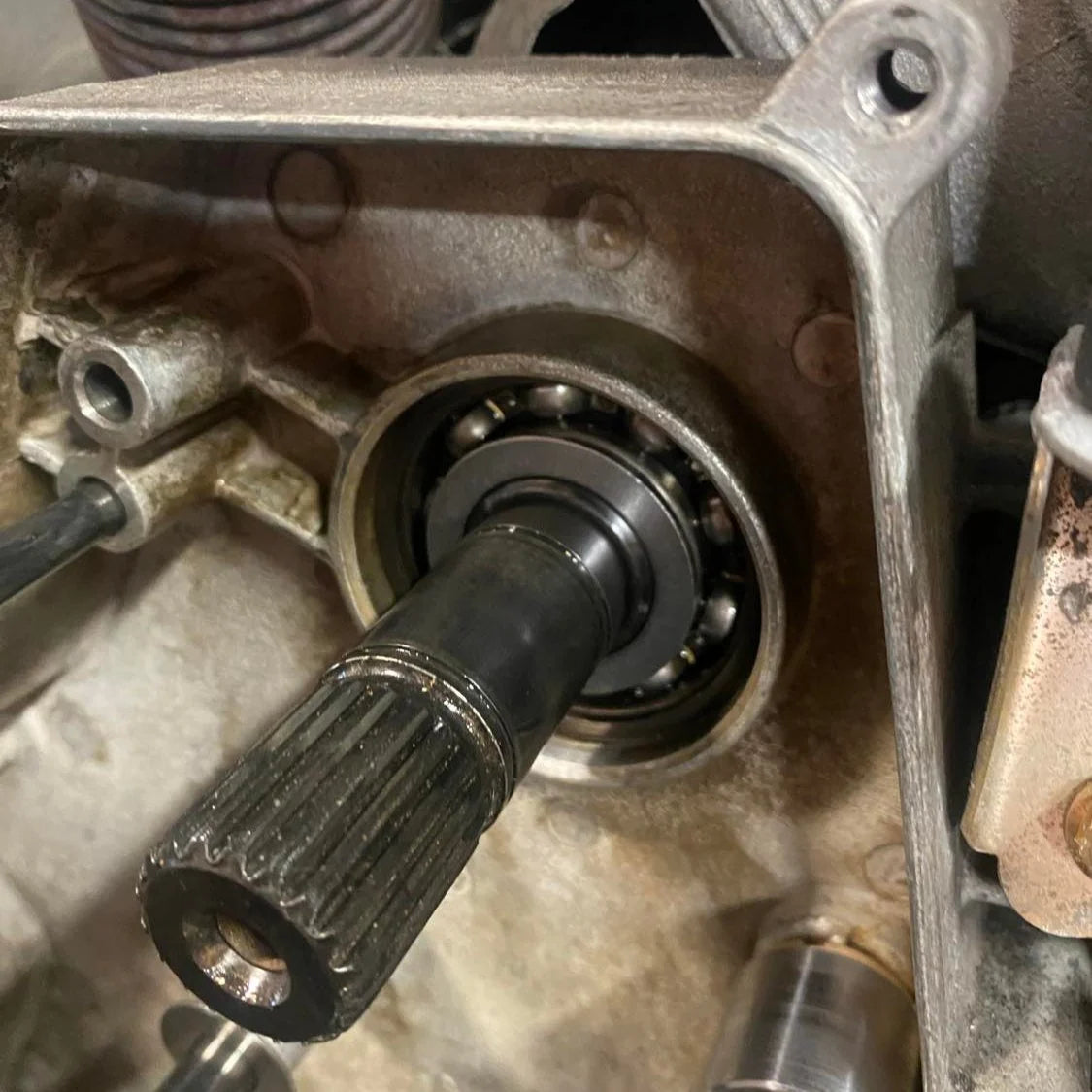

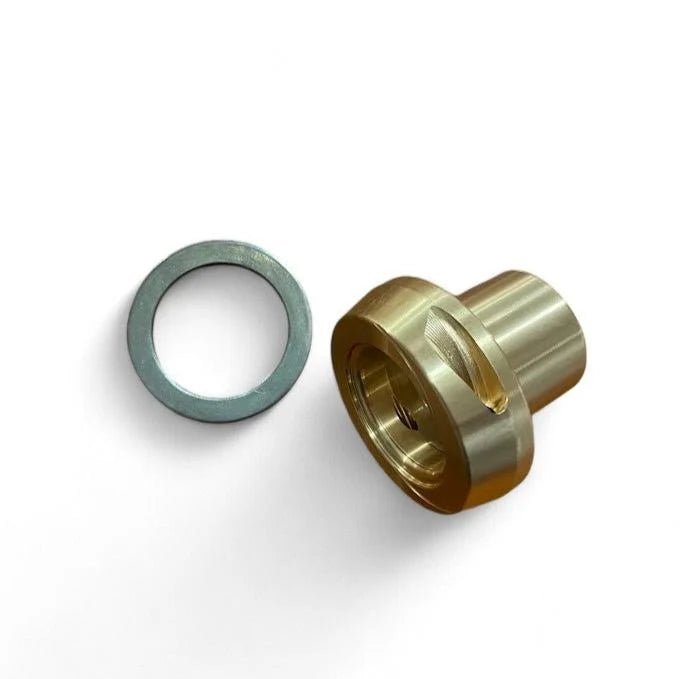

6 - Install the ring shim supplied with the HD Gear Bushing kit onto the jackshaft first (see picture)

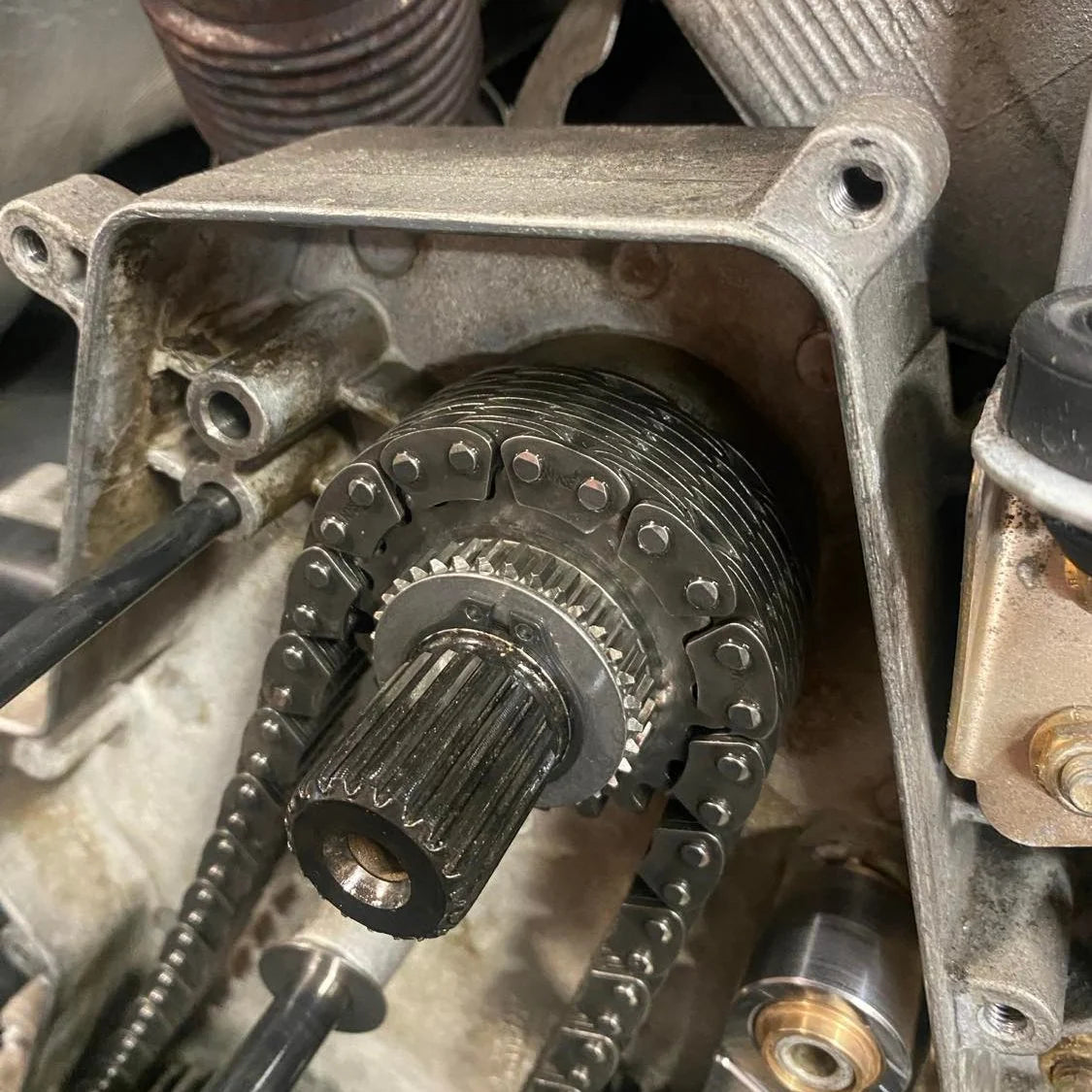

7 - Install the gear equipped with the HD Gear Bushing
8 - Then install the OEM washer and circlip (so, it remains one OEM washer and circlip that you do not use)
9 - Install other chain case parts in reverse order of disassembly
